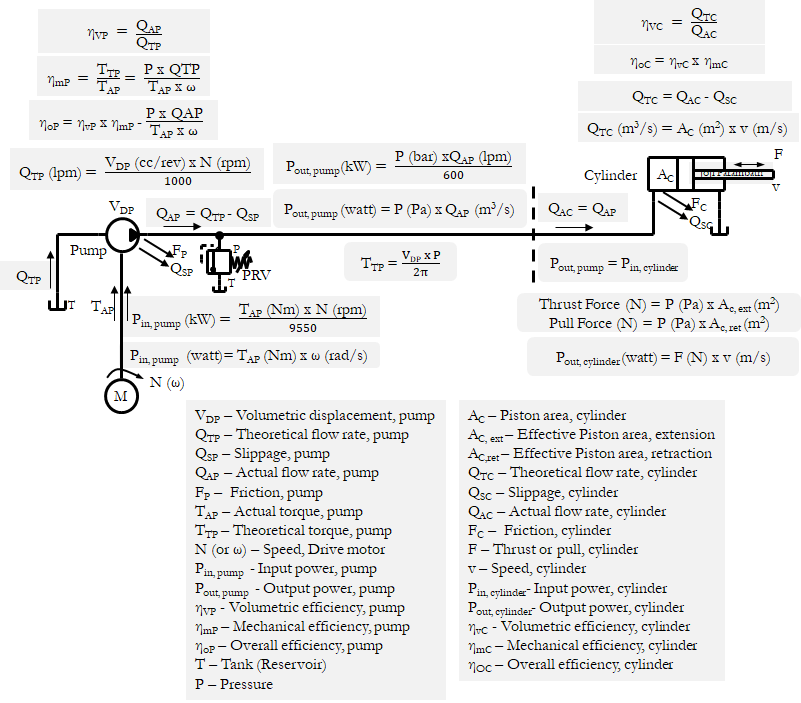

The figure below gives the summary of useful relations (SI units) of a pump-cylinder hydraulic system for highlighting their correlations.
